Конические однорядные

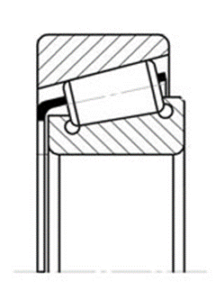

Подшипники роликовые конические однорядные
 |
 |
| Обозначение |
Размеры, мм |
| ГОСТ |
ISO |
внутренний — наружный -высота |
| 7202 |
30202 |
15-35-11,75/9 |
| 7203 |
30203 |
17-40-13,25/11 |
| 7204 |
30204 |
20-47-15,25/12 |
| 7205 |
30205 |
25-52-16,25/13 |
| 7206 |
30206 |
30-62-17,25/14 |
| 7207 |
30207 |
35-72-18,25/15 |
| 7208 |
30208 |
40-80-19,75/16 |
| 7209 |
30209 |
45-85-20,75/16 |
| 7210 |
30210 |
50-90-21,75/17 |
| 7211 |
30211 |
55-100-22,75/18 |
| 7212 |
30212 |
60-110-23,75/19 |
| 7213 |
30213 |
65-120-24,75/20 |
| 7214 |
30214 |
70-125-26,25/21 |
| 7215 |
30215 |
75-130-27,25/22 |
| 7216 |
30216 |
80-140-28,25/22 |
| 7217 |
30217 |
85-150-30,25/24 |
| 7218 |
30218 |
90-160-32,5/26 |
| 7219 |
30219 |
95-170-34,5/27 |
| 7220 |
30220 |
100-180-37/29 |
| 7224 |
30224 |
120-215-43,5/34 |
| 7228 |
30228 |
140-250-45,75/36 |
| 7230 |
30230 |
150-270-49/38 |
| 7244 |
30244 |
220-400-70/52 |
| 7304 |
30304 |
20-52-16,25/13 |
| 7305 |
30305 |
25-62-18,25/15 |
| 7306 |
30306 |
30-72-20,75/17 |
| 7307 |
30307 |
35-80-22,75/18 |
| 7308 |
30308 |
40-90-25,25/20 |
| 7309 |
30309 |
45-100-27,25/22 |
| 7310 |
30310 |
50-110-29,25/23 |
| 7311 |
30311 |
55-120-31,5/25 |
| 7312 |
30312 |
60-130-33,5/27 |
| 7313 |
30313 |
65-140-36/28 |
| 7314 |
30314 |
70-150-38/30 |
| 7315 |
30315 |
75-160-40/31 |
| 7316 |
30316 |
80-170-42,5/33 |
| 7317 |
30317 |
85-180-44,5/35 |
| 7318 |
30318 |
90-190-46,5/36 |
| 7320 |
30320 |
100-215-51,5/39 |
| 7322 |
30322 |
110-240-54,5/42 |
| 7324 |
30324 |
120-260-59,5/46 |
| 7506 |
32206 |
30-65-21,25/17 |
| 7507 |
32207 |
35-72-24,25/20 |
| 7508 |
32208 |
40-80-24,75/20 |
| 7509 |
32209 |
45-85-24,75/20 |
| 7510 |
32210 |
50-90-24,75/20 |
| 7511 |
32211 |
55-100-26,75/21 |
| 7512 |
32212 |
60-110-29,75/24 |
| 7513 |
32213 |
65-120-32,75/27 |
| 7514 |
32214 |
70-125-33,25/27 |
| 7515 |
32215 |
75-130-33,25/27 |
| 7516 |
32216 |
80-140-35,25/28 |
| 7517 |
32217 |
85-150-38,5/30 |
| 7518 |
32218 |
90-160-42,5/34 |
| 7519 |
32219 |
95-170-45,5/37 |
| 7520 |
32220 |
100-180-49/39 |
| 7522 |
32222 |
110-200-56/46 |
| 7524 |
32224 |
120-215-61,5/50 |
| 7526 |
32226 |
130-230-67,75/54 |
| 7528 |
32228 |
140-250-71,75/58 |
| 7530 |
32230 |
150-270-77/60 |
| 7532 |
32232 |
160-290-84/67 |
| 7536 |
32236 |
180-320-91/70 |
| 7538 |
32238 |
190-340-97/75 |
| 7544 |
32244 |
220-400-114/90 |
| 7604 |
32304 |
20-52-22,25/18,5 |
| 7605 |
32305 |
25-62-25,25/21 |
| 7606 |
32306 |
30-72-27,75/23 |
| 7607 |
32307 |
35-80-32,75/27 |
| 7608 |
32308 |
40-90-35,25/28,5 |
| 7609 |
32309 |
45-100-38,25/31 |
| 7611 |
32311 |
55-120-45,5/36,5 |
| 7612 |
32312 |
60-130-48,5/39 |
| 7613 |
32313 |
65-140-51/41 |
| 7614 |
32314 |
70-150-54/43 |
| 7615 |
32315 |
75-160-58/46,5 |
| 7616 |
32316 |
80-170-61,5/49 |
| 7618 |
32318 |
90-190-67,5/53,5 |
| 7620 |
32320 |
100-215-77,5/61,5 |
| 7622 |
32322 |
110-240-84,5/66 |
| 7624 |
32324 |
120-260-90,5/70,5 |
| 7634 |
32334 |
170-360-127/100 |
| 2007106 |
32006 |
30-55-17/14 |
| 2007107 |
32007 |
35-62-18/15 |
| 2007108 |
32008 |
40-68-19/16 |
| 2007109 |
32009 |
45-75-20/16 |
| 2007110 |
32010 |
50-80-20/16 |
| 2007111 |
32011 |
55-90-23/19 |
| 2007113 |
32013 |
65-100-23/19 |
| 2007114 |
32014 |
70-110-25/20 |
| 2007115 |
32015 |
75-115-25/20 |
| 2007116 |
32016 |
80-125-29/23 |
| 2007118 |
32018 |
90-140-32/26 |
| 2007119 |
32019 |
95-145-32/26 |
| 2007120 |
32020 |
100-150-32/26 |
| 2007121 |
32021 |
105-160-35/28 |
| 2007122 |
32022 |
110-170-38/31 |
| 2007124 |
32024 |
120-180-38/31 |
| 2007128 |
32028 |
140-210-45/36 |
| 2007132 |
32032 |
160-240-54/41 |
| 2007136 |
32036 |
180-280-64/52 |
| 2007138 |
32038 |
190-290-64/52 |
| 2007140 |
32040 |
200-310-70/56 |
| 2007144 |
32044 |
220-340-76/59 |
| 2007148 |
32048 |
240-360-76/62 |
| 2007152 |
32052 |
260-400-87/71 |
| 2007156 |
32056 |
280-420-87/71 |
| 2007164 |
32064 |
320-480-100/82 |
| 2007913 |
32913 |
65-90-17/14 |
| 2007915 |
32915 |
75-105-20/17 |
| 2007922 |
32922 |
110-150-25/20 |
| 2007928 |
32928 |
140-190-32/26 |
| 2007930 |
32930 |
150-210-38/31 |
| 2007934 |
32934 |
170-230-38/31 |
| 2007936 |
32936 |
180-250-45/36 |
| 2007938 |
32938 |
190-260-45/36 |
| 2007940 |
32940 |
200-280-51/41 |
| 2007944 |
32944 |
220-300-51/41 |
| 2007948 |
32948 |
240-320-51/41 |
| 2007952 |
32952 |
260-360-63,5/51 |
| 2007960 |
32960 |
300-420-76/62 |
| 2007968 |
32968 |
340-460-76/62 |
| 2007972 |
32972 |
360-480-76/62 |
Подшипники роликовые конические однорядные с большим углом конуса
|
 |
| Обозначение |
Размеры, мм |
| ГОСТ |
ISO |
внутренний — наружный -высота |
| 27304 |
— |
20-52-16,25/12 |
| 27305 |
31305 |
25-62-18,25/13 |
| 27306 |
31306 |
30-72-20,75/14 |
| 27307 |
31307 |
35-80-22,75/15 |
| 27308 |
31308 |
40-90-25,25/17 |
| 27309 |
31309 |
45-100-27,25/18 |
| 27310 |
31310 |
50-110-29,25/19 |
| 27311 |
31311 |
55-120-31,5/21 |
| 27312 |
31312 |
60-130-33,5/22 |
| 27313 |
31313 |
65-140-36/23 |
| 27314 |
31314 |
70-150-38/25 |
| 27315 |
31315 |
75-160-40/26 |
| 27316 |
31316 |
80-170-42,5/27 |
| 27317 |
31317 |
85-180-44,5/30 |
| 27318 |
31318 |
90-190-46,5/30 |
| 27319 |
31319 |
95-200-49,5/32 |
| 27606 |
32306B |
30-72-28,75/23 |
| 27607 |
32307B |
35-80-32,75/25 |
| 27608 |
32308B |
40-90-35,25/27 |
| 27609 |
32309B |
45-100-38,25/30 |
| 27610 |
32310B |
50-110-42,25/33 |
| 27612 |
32312B |
60-130-48,5/37 |
| 27615 |
32315B |
75-160-58/45 |
| 27616 |
32316B |
80-170-61,5/48 |
| 27617 |
32317B |
85-180-63,5/49 |
| 27709 |
— |
45-100-31,75/20,5 |
| 27711 |
— |
55-115-34/23,5 |
| 27714 |
— |
70-140-39/27 |
| 27911 |
— |
53,975-123,825-39,5/26 |
| 1027320 |
31320J |
100-215-56,5/37 |
| 1027322 |
31322J |
110-240-63/38 |
| 1027324 |
— |
120-260-67,5/43 |
| 1027326 |
— |
130-280-72/44 |
| 1027328 |
31328J |
140-300-77/48 |
| 1027330 |
31330J |
150-320-82/50 |
| 1027332 |
— |
160-340-87/54 |
| 1027334 |
— |
170-360/92 |
| 1027336 |
— |
180-380-97/60 |
| 1027338 |
— |
190-400/101 |
| 1027340 |
— |
200-420-107/66 |
| 1027344 |
— |
220-460-117 |
| 1027348 |
— |
240-500-125 |
| 1027352 |
— |
260-540-135 |
| 1027356 |
— |
280-580-145 |
| 1027360 |
— |
300-620-154 |
